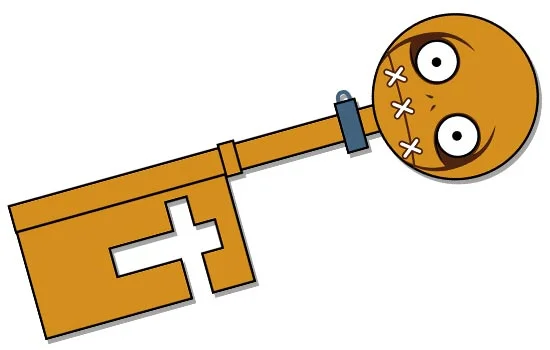

I was commissioned to create Paracelsus, an ancient relic in the form of a key in the game Guilty Gear.

paracelsus_old_00

After scaling the plans, I selected a 4″ ABS pipe to use as the shaft. Since the prop will be large, I’ll be making it to disassemble for transportation.

paracelsus_old_01

I cut sections of pipe to use as connectors for the parts.

paracelsus_old_02

I cut out a section of the pipe so it will fit inside the shaft sections.

paracelsus_old_03

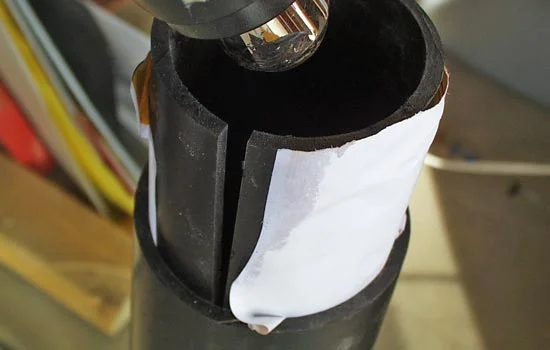

I heated the connector to narrow the diameter of the ABS.

paracelsus_old_04

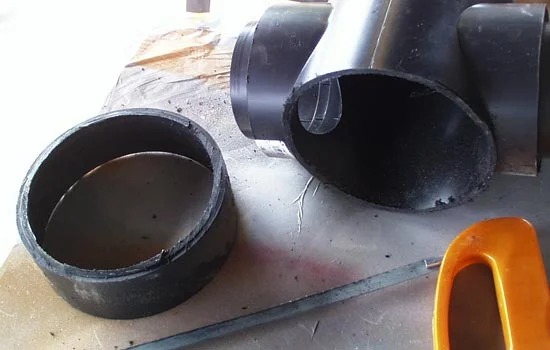

The collar is 6″ in diameter so I cut off a section of a 4-way ABS connector.

paracelsus_old_05

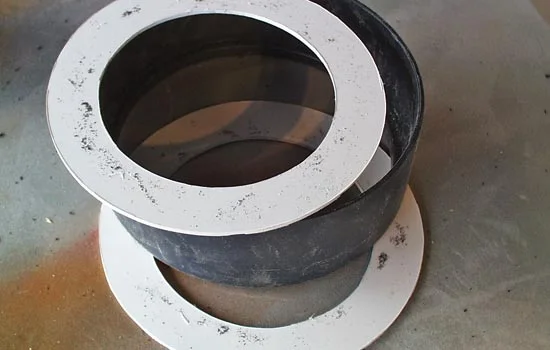

I cut end caps out of styrene leaving a hole to fit the shaft.

paracelsus_old_06

I glued on the base and inserted a thin styrene sheet to form the interior wall.

paracelsus_old_07

I drilled a hole for a u-bolt, inserting brass tubes to protect the threads.

paracelsus_old_08

I filled the interior with urethane expanding foam.

paracelsus_old_09

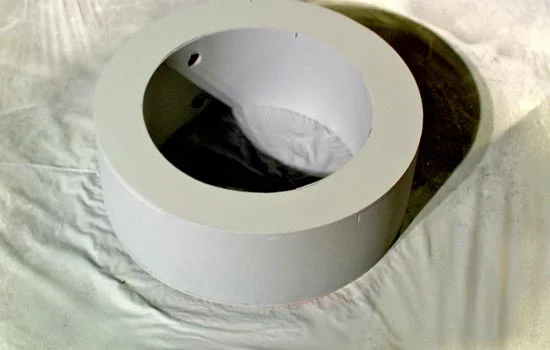

I glued on the top end cap and painted a coat of primer.

paracelsus_old_10

The final painted collar on the neck portion of the shaft.

paracelsus_old_11

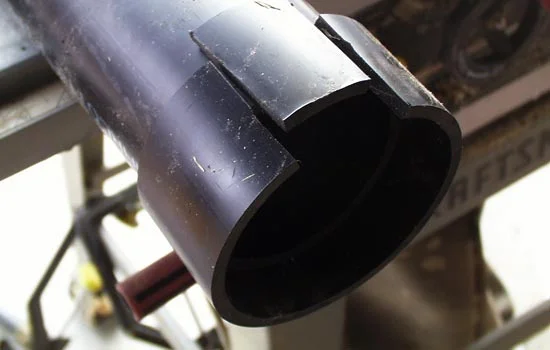

A smaller collar is located at the top of the lower shaft. I cut a section of the shaft pipe and heated it to expand it. I cut out another section to fill the gap.

paracelsus_old_12

I wanted the eyes to be hemispheres so I cut a template of the proper diameter and marked off a section on a plastic light globe.

paracelsus_old_13

I was able to cut 3 domes from the globe…two for the eyes, one in case I messed up.

paracelsus_old_14

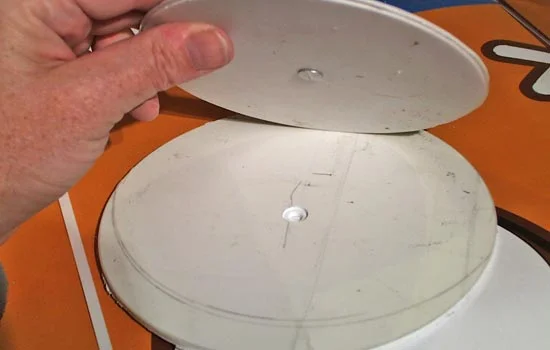

To make the eyes rotate, I cut discs from styrene and attached them in the center with a screw post. They would eventually be glued into a styrene base attached to the head.

paracelsus_old_15

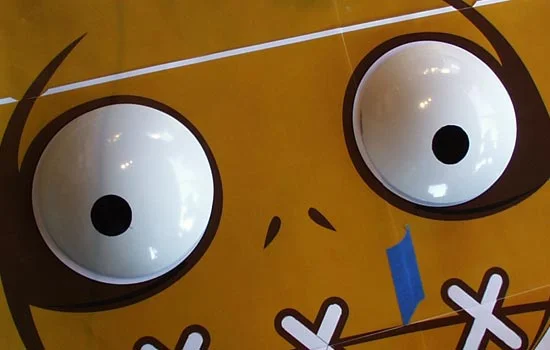

The eyes test fit to the color plans.

paracelsus_old_16

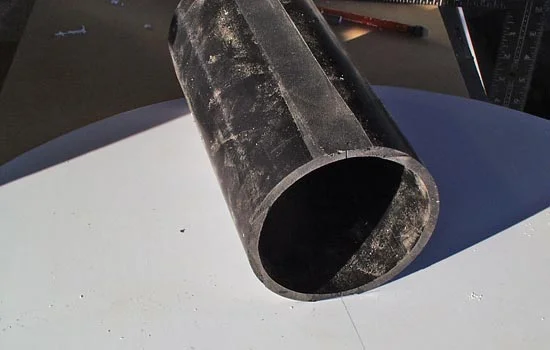

I cut a section of pipe to be embedded in the head. I flattened two sides to glue to the front and back.

paracelsus_old_17

I glued styrene sides to the head styrene disc.

paracelsus_old_18

I cut out the nostrils and used putty to create depressions.

paracelsus_old_19

I filled the interior of the head with expanding foam and glued the head disc closed.

paracelsus_old_20

For the bit (the business end of any key) I cut profiles out of 1″ blue insulation foam.

paracelsus_old_21

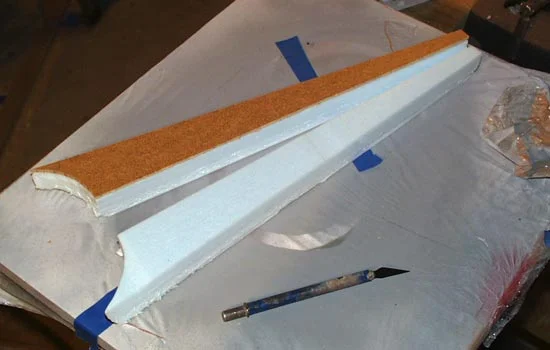

I spilt each piece in half in preparation to be glued.

paracelsus_old_22

I cut a piece of masonite and attached it to the pipe with threaded rods. This will support the foam and allow it to be secured to the pipe.

paracelsus_old_23

I glued all the pieces for one half together.

paracelsus_old_24

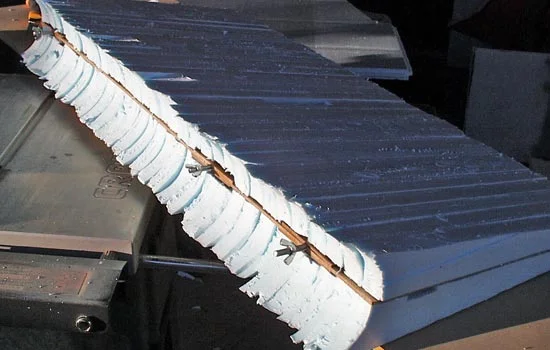

Once both sides were done, I glued them to the masonite.

paracelsus_old_25

I cut out the hole in the bit, leaving a section at the edge for support.

paracelsus_old_26

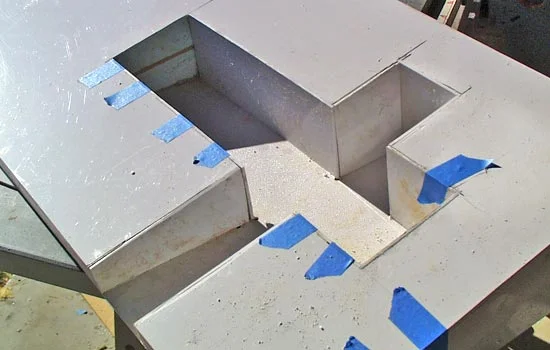

I covered the foam with 1/8″ thick ABS plastic. This plastic is thin enough to be light but thick enough so that any undulation in the foam doesn’t show through.

paracelsus_old_27

The cleaned up bit attached and glued to the pipe.

paracelsus_old_28

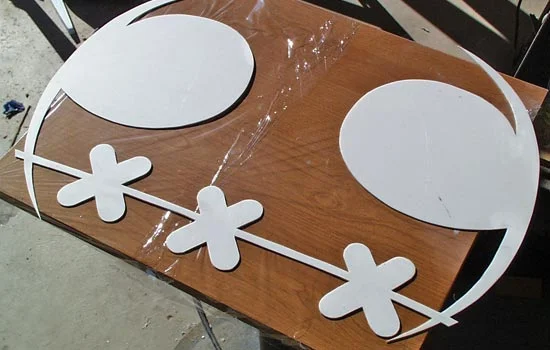

I cut thin styrene for the face pattern.

paracelsus_old_29

I painted the head and attached the face pattern to it.

paracelsus_old_30

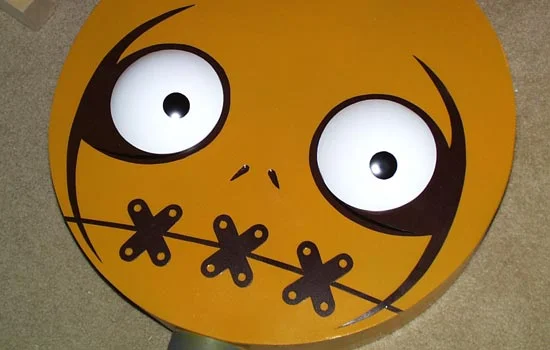

The eyes glued in place.

paracelsus_old_31

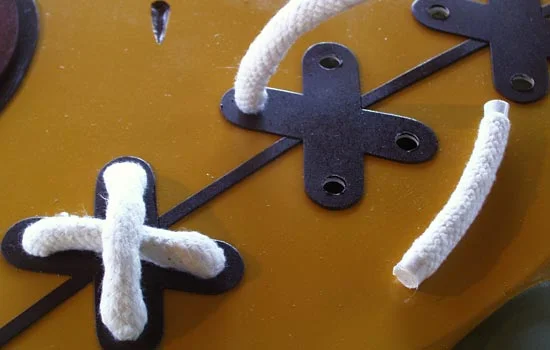

I used 1/2″ thick upholstery edging for the stitches. To keep them from unraveling, I taped the edges and applied hot glue to the ends. The ends were then tucked into 3/8″ hole.

paracelsus_old_32

The final assembled Paracelsus. The movable eyes are fun to play with!

paracelsus_old_33

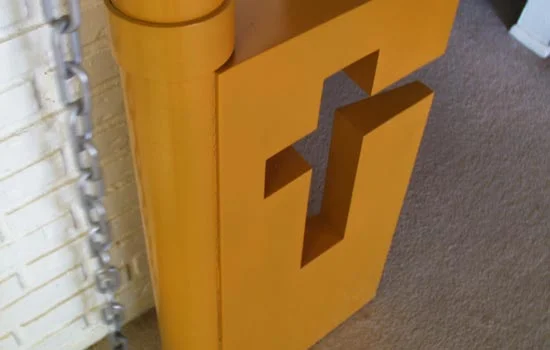

Detail of the finished bit. I’m using a plastic chain from a parrot cage supplier.

paracelsus_old_34

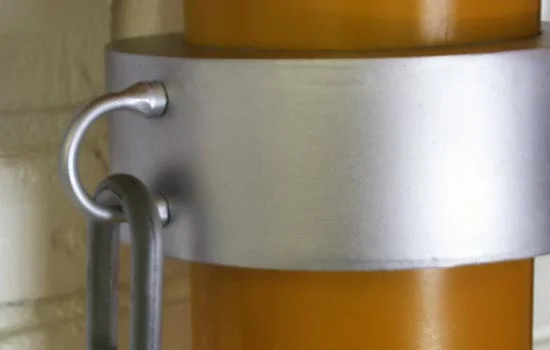

The u-bolt can slide out to remove the chain. It can be secured inside the neck with nuts but the threads keep it in place just fine.

paracelsus_old_35

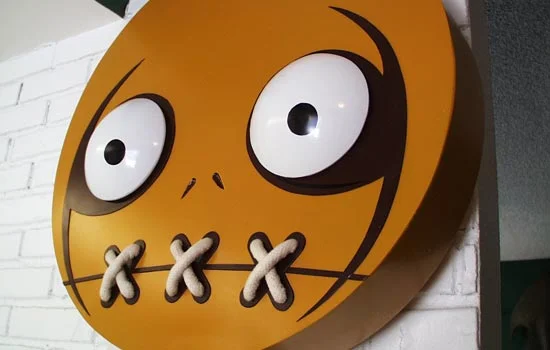

Detail of the finished head.The assembled key is over 7 feet tall and only weighs 25 lbs.

paracelsus_old_36

The client Bunnie-Fu with Paracelsus at MegaCon 2010 in Orlando. She’s 5’11” and is still dwarfed by this giant!

paracelsus_old_37
